Description

Features

– Low-cost, small size, embedded application

– Less than ±1℃ repeatability

– 8-14μm spectral response – ±2℃ or ±2% accuracy

– 0.1℃ resolution

– 100~500ms response time

– Full temperature calibration & compensation

– SPI, RS232 & RS485 output

– Easy to install & maintain

– Excellent ESD

Description

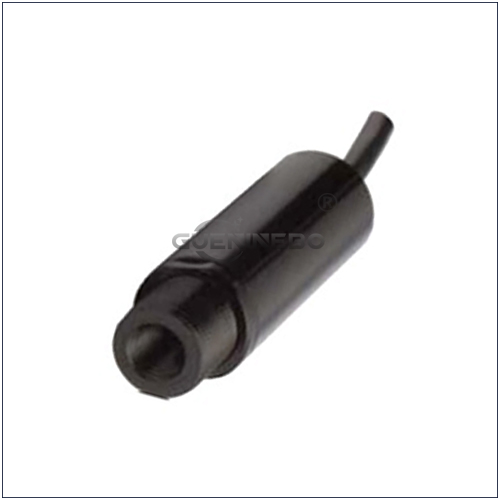

GNB101 industrial infrared temperature probe is a low cost and non-contact product, which can be eas ily integrated in PDA & handhold instruments, also installed in narrow space for special requirements. Adopted advanced process technology and powerful ASIC, GNB101 provided many outputs, such as SPI, RS232, RS485. For power supply, +2.7VDC, +3VDC, +3.3VDC and +5VDC are available to select. Also Vigor can provide special product as clients’ request data format, power supply, temperature range, size and so on.

Applications

Various hand-hold instruments & Industrial PDA Small space temperature monitoring Portable temperature control equipment
